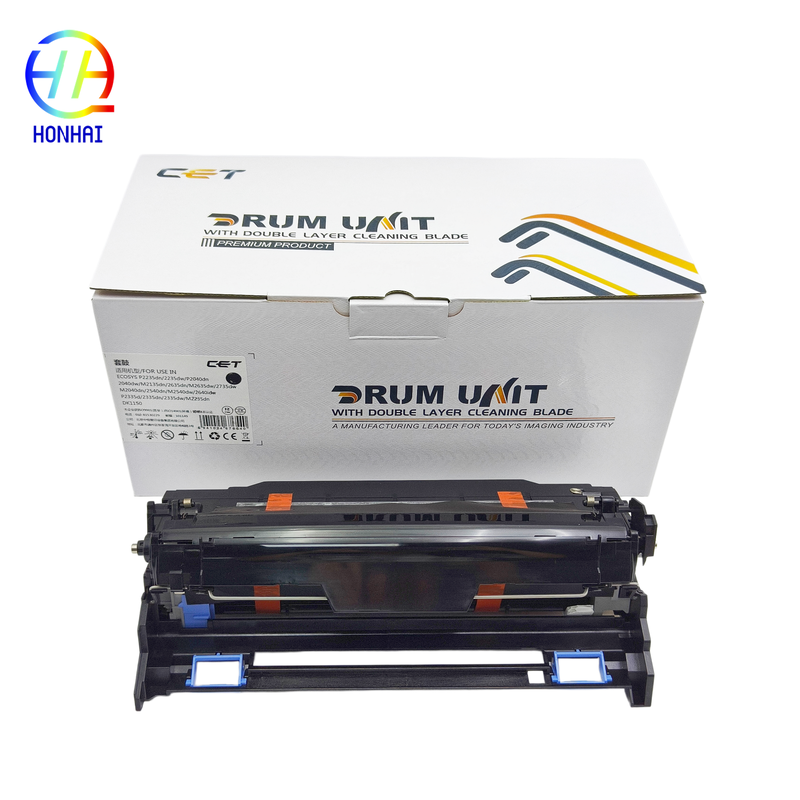

Drum Unit 302RV93010 for KYOCERA ECOSYS P2235 P2040 P2335 M2135 M2635 M2040 M2540 M2235 Printer parts

The 302RV93010 Drum Unit is an aftermarket imaging drum designed specifically for Kyocera ECOSYS series printers. As a premium quality replacement imaging drum unit and manufactured to meet or exceed original equipment manufacturer (OEM) specifications, this unit produces sharp, specific black-and-white text and a crisp grey-scale colour range, resulting in very professional quality documents. Incorporating long-lasting drum cores and clean blades that provide consistent, quality output, this drum unit minimises background fogging and increases the life span of your printer system. Heavy-duty/drum-type cleaning assemblies provide a quality printing solution for busy office work environments.

• Product Type: Drum Unit / Imaging Drum Assembly
• Compatible Brand: KYOCERA
• Part Number: 302RV93010
• Compatible Models: KYOCERA ECOSYS P2235dn, P2235dw, P2335d, P2335dn, P2335dw, M2040dn, M2040dw, M2135dn, M2540dn, M2540dw, M2635dn, M2635dw, M2235dn, M2735dn, M2835dw, P2040, P2235
• Key Features: OEM-grade drum core, precision cleaning blade, high-yield page output, low background fog, plug-and-play installation
• Product Category: Printer Spare Parts / Imaging Drum

• Never expose the drum surface (the imaging roller) to direct sunlight or relatively strong room light for more than a few minutes. Otherwise, the photosensitive coating is permanently impaired.
• Do not touch the roller with your bare fingers. Oils and dirt from the skin will cause print defects. If touched, however, wipe lightly with a soft, dry, lint-free cloth.
• Store the drum unit in a cool, dry place (below 40° C) and in its original packing until immediately before installation.

1. Turn your printer off and open the front cover.
2. Remove the toner cartridges.
3. Locate and release the drum unit lock lever, then gently pull the old drum unit toward you.
4. Unpack a new 302RV93010 drum unit and gently shake the unit side-to-side to distribute the different drum components evenly.
5. With the unit still toward you, pull downward on its separator tab, then insert the drum unit in the printer until it snaps into position, and reinstall the toner cartridges.
6. Close the front cover, turn the printer on, and print a test page to confirm the installation.
